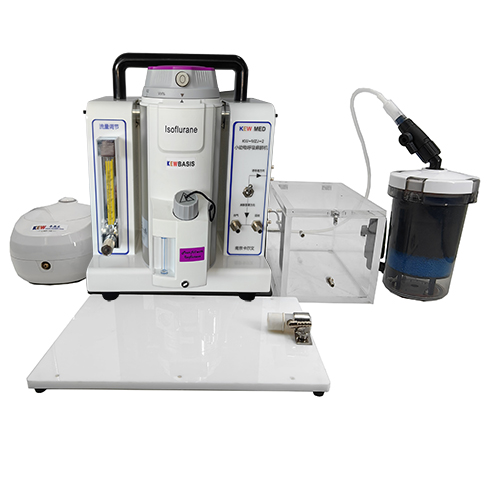

Product Features:

1. Suitable for animals up to 5.2 kg, including rodents such as rats and mice

2. Dual breathing circuits with a closed-loop gas path design

3. Imported flowmeter with adjustable range of 0–1000 mL/min, suitable for low-flow anesthesia

4. Lightweight and portable unibody sheet metal construction

5. Vaporizer with automatic flow and temperature compensation, adjustable in 0.5% increments

6. Stable and safe isoflurane vaporizer output, with concentration adjustable from 0% to 5%

7. Optional negative pressure scavenging system with real-time concentration monitoring and controllable activated carbon replacement

8. Compact and aesthetically pleasing design, with built-in zero-lock knobs for easy operation

9. Includes a transparent induction chamber for clear observation of anesthesia depth

10. Surgical masks adaptable for rats and mice; nasal interface can be trimmed according to animal size

11. Dedicated valve for connecting both pre-anesthesia chamber and surgical platform

12. Waste gas absorption system to maintain a safe laboratory environment

Technical Specifications:

1. Main Unit Dimensions: 250 × 180 × 230 mm (L × W × H, excluding handle)

2. Power Supply: 220 V, 50 Hz

3. Gas Output: 0–10 L/min

4. Output Concentration: 0.5%–5% adjustable

5. Flowmeter Range: 0–1000 mL/min

6. Exhaust Filter: Transparent housing with replaceable filter media

7. Compatible Filter Materials: Activated carbon or soda lime

8. Induction Chamber: Transparent, 260 × 150 × 150 mm

9. Compatible Anesthetic: Isoflurane

10. System Components:

    • 1 small animal anesthesia main unit

    • 1 gas output unit

    • 1 anesthesia filter

    • 1 pre-anesthesia chamber

    • 1 surgical platform set

    • 1 set of animal masks
