Product Features & Technical Specifications

1. LCD display for real-time temperature monitoring and control

2. Intelligent temperature control system with high accuracy and reliability

3. Far-infrared heating, similar to sunlight, ensures efficient heat absorption by animal tissues safely and comfortably

4. Low-voltage DC heating for operational safety

5. Continuous display of set temperature and actual measured temperature

6. Configurable minimum and maximum temperature alarms (optional)

7. Audible and visual alarm indicators (optional)

8. Clear digital display

9. Touch-sensitive adjustment keys for ease of use

10. Temperature range: 0–50 °C; accuracy: 0.1 °C

11. Easy-to-clean heating pad surface

12. Stainless steel rectal temperature probe with 1.5 mm rounded tip, non-irritating to animals

13. Unit dimensions: 209 × 134 × 114 mm (L × W × H)

14. Heating pad dimensions: 250 × 120 mm

15. Heating power output display: 10%–100% in 10 levels

16. Extra-large digital display for clear visibility during experiments

Setup Instructions

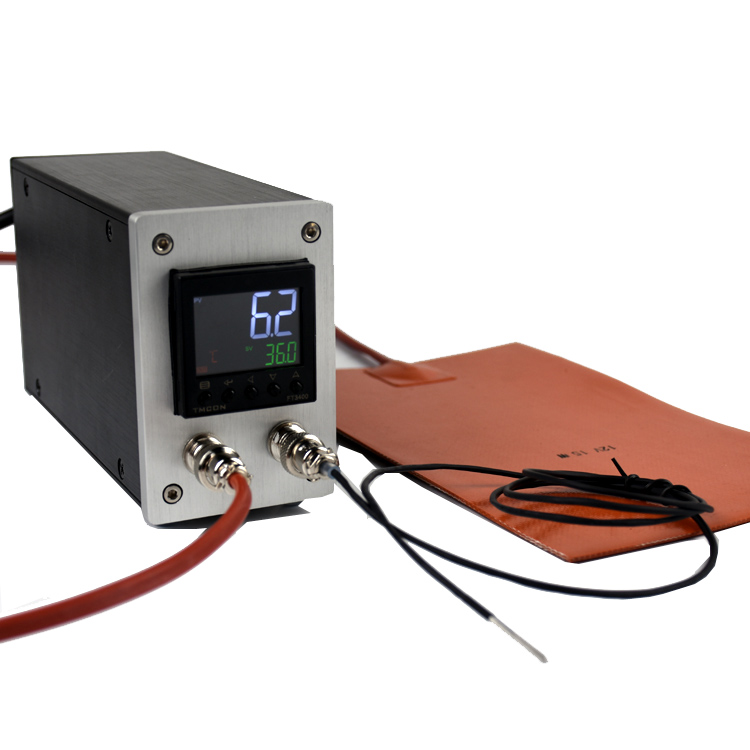

A. Connect the heating pad to the “Heating” port on the front panel
B. Insert the temperature probe into the “Sensor” port on the front panel
C. Connect the power cord

Temperature Setting Procedure

1. Turn on the power switch. Press the SET key for 1 second to activate setting mode (SU). Use ∧ or ∨ to increase or decrease the temperature. Press 巜 to switch digits for quick adjustment. Press SET again to return to the main interface, or wait 2 minutes for automatic return.

2. Place the experimental animal on the heating pad. Insert the probe into the animal’s rectum to a depth of at least 3/4 of its length. The displayed temperature reflects the animal’s core temperature. The heating pad activates only when the set temperature exceeds the animal’s current body temperature.

Key Advantages:

• Animal Welfare-Oriented Design: Gentle far-infrared heat mimics natural sunlight

• Precision Control: High-accuracy probe and intelligent algorithm maintain stable temperature

• User-Friendly Operation: Large display and intuitive controls streamline experimental workflows

• Safety Compliance: Low-voltage DC system eliminates electrical hazards

This system is suitable for prolonged surgeries or recovery phases where precise thermal management is critical to animal physiology and experimental outcomes.
