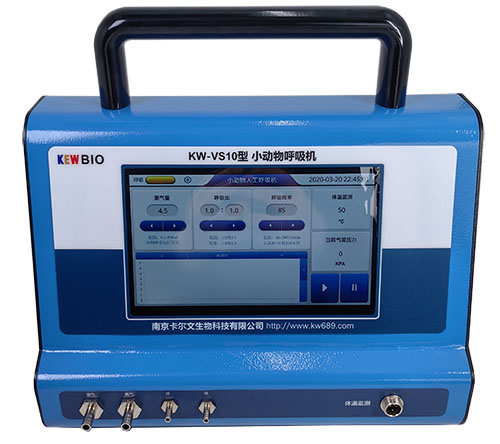

Small Animal Ventilator VS10

Small Animal Ventilator VS10

The Small Animal Ventilator VS10 represents a new generation of animal respiratory support systems. It features a 7-inch touchscreen for intuitive operation and incorporates a Tesla pressure-release valve in the gas pump for smoother, more stable airflow output. Beyond providing artificial respiration during surgical procedures, the device also integrates real-time body temperature monitoring to enhance experimental oversight.

Product Features

  1. 7-inch LCD touchscreen for display and control

  2. Scalable and stretchable airway pressure waveform display

  3. Adjustable overpressure protection (0–6 kPa); automatic pressure release when exceeding set limit

  4. Oxygen inlet for anesthetic gas or oxygen supplementation

  5. Exhaust outlet for connection to anesthetic gas filters

  6. Respiratory rate range: 1–200 breaths/minute

  7. Output gas volume calibration: 1–80 cc

  8. Adjustable LCD brightness

  9. Tidal volume range: 0.1–10 mL

  10. Inspiratory-to-expiratory ratio (I:E): 1:5 to 5:1 (25 selectable ratios)

  11. Suitable for mice, rats, guinea pigs, and other small animals

Technical Specifications

  1. Dimensions: 270 × 200 × 260 mm

  2. Screen: 7-inch touch display, 800 × 480 resolution

  3. Respiratory rate: 1–200 breaths/minute

  4. Tidal volume: 0.1–10 mL

  5. Inspiratory-to-expiratory ratio: 1:5 to 5:1

  6. Airway pressure waveform display range: 7 kPa

  7. Airway pressure protection setting range: 1–6 kPa

  8. Inspiratory negative pressure: –1.5 kPa

  9. Body temperature monitoring range: 0.0–50.0 °C

  10. Gas inlet/exhaust port: 6 mm barbed connector

  11. Inspiration/expiration port: 4 mm barbed connector

  12. Output gas calibration: 1–80 cc

  13. Adjustable LCD brightness

  14. Input voltage: AC 110–220 V / 50 Hz

  15. Operating humidity: <85% RH

Key Advantages:

  • Advanced Tesla valve design ensures stable and gentle ventilation

  • Integrated temperature monitoring supports comprehensive physiological monitoring

  • Flexible pressure protection settings enhance experimental safety

  • High-resolution touch interface simplifies parameter adjustment

  • Compatible with standard laboratory gas delivery and filtration systems

This system is ideal for researchers requiring precise ventilatory control combined with physiological monitoring in small animal studies.
