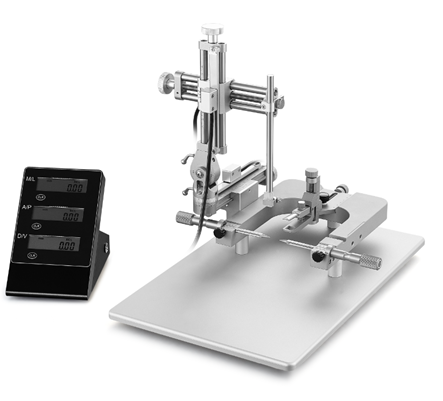

Product Features

1. Compatible with adapters for rats, mice, birds, cats, geckos, and guinea pigs

2. Manipulator arm movement range: 80 mm in vertical, lateral, and anterior-posterior directions

3. Vertical rotation up to 180° with locking at any position

4. Horizontal rotation up to 360° with locking at any position

5. Compatible with microsyringe pumps, microscopic imaging systems, cranial drills, and spinal impactors

6. Laser-engraved scales and open U-base design facilitate easy reading

7. Dual lead-screw design; 80 mm travel in AP, ML, and DV axes with 0.01 mm positioning accuracy aligned with brain atlases

8. Maintains precision and flexibility across temperature variations

9. Specially treated surfaces for easy cleaning and long-term maintenance

10. Digital display allows zero-setting at any point for 3D manipulator arms

11. Direct positioning from Bregma point using atlas coordinates eliminates secondary measurements and calculations

12. Moving distance readout accuracy: 10 μm for higher experimental requirements

13. Clear LCD display

14. Extended baseplate: 400 × 255 mm for multiple animal applications

15. Unique vertical operation direction indicator prevents misoperation

16. Separate vertical locking and positioning knobs ensure precision at any angle

17. Optimized lateral rotation workspace: 28 mm clearance between knob and U-frame

18. Specially processed scale components reduce reading fatigue

19. Curved head adapters provide secure animal fixation

20. Spiral advancement ear bars enable convenient operation

21. Universal holder range: 6–12 mm

Technical Specifications

1. Display: Simultaneous 3-axis LCD readout

2. Digital display unit dimensions: 100 × 160 × 120 mm

3. Power supply: 1.5 V

4. Readout accuracy: 0.01 mm

5. External LCD display (80 mm travel in AP/ML/DV axes, 0.01 mm positioning accuracy, aligned with brain atlases)

6. Function key: Zero-setting button

7. Material: Alloy

8. Instrument dimensions: 400 × 255 × 340 mm

9. Manipulator rotation: 360° horizontal, 180° vertical

10. 3D translation range: 80 mm

11. Spiral advancement ear bars for rapid skull fixation

12. Precise positioning in vertical, lateral, anterior-posterior, and rotational axes

13. Operating conditions: 0–40 °C; <80% RH

14. Optional accessories:

    • Electronic rat brain atlas

    • Microsyringe holder

    • Mouse black adapter platform

    • Cranial drill holder

    • Rat anesthesia mask

    • Mouse anesthesia mask
