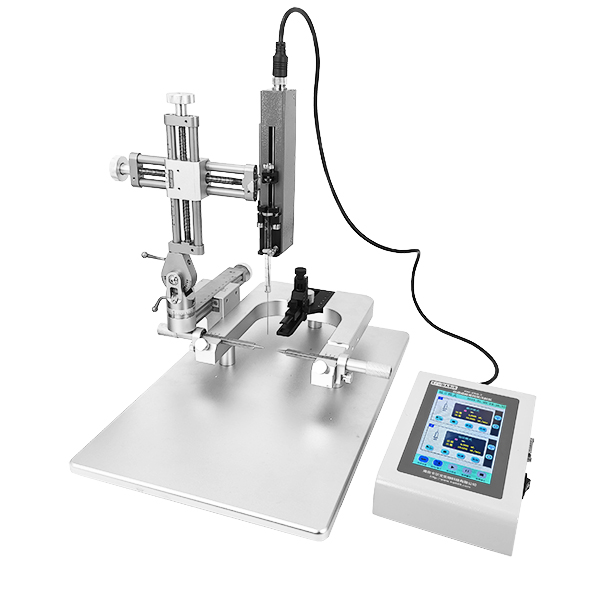

Product Features

1. Single-channel design

2. Multiple operational modes

3. Modular structure for easy installation and fixation

4. Color touchscreen LCD for intuitive operation

5. Compatible with a wide range of syringes

6. High-precision motion control

7. RS485 communication supporting Modbus protocol

8. External signal control for start/stop and direction

9. Wide-range power input compatibility

10. Full metal enclosure

Technical Specifications

1. Display: 5-inch touchscreen with one-key Chinese/English language切换

2. Channels: 1

3. Operation Modes: Infusion, Withdrawal, Infuse-Then-Withdraw, Withdraw-Then-Infuse, Continuous (5 modes)

4. Syringe Compatibility: 0.1 μL – 1000 μL

5. Actuator Stroke: 70 mm

6. Flow Rate Range: 0.013 nL – 1.085 mL

7. Stroke Resolution: 0.165 μm

8. Rated Linear Thrust: 20 N

9. Main Unit Dimensions: 175 × 120 × 60 mm (L × W × H)

10. Actuator Dimensions: 160 × 25 × 50 mm

11. Mounting Rod Diameter: 8 mm

12. Control Accuracy: ≤ 0.5% error at ≥ 30% of full stroke

13. External Control Interface: Start/Stop, Fast Forward, Fast Reverse

14. Communication: RS485; Power Supply: AC 220 V ± 10%, 50/60 Hz; Power Consumption: < 10 W

15. Operating Environment: 0–40 °C, < 80% RH
