Product Features:

1. Suitable for animals up to 5.2 kg, including rodents such as rats and mice

2. Dual breathing circuits with a closed-loop gas path design

3. Imported flowmeter with an adjustable range of 0–1000 mL/min, enabling precise low-flow anesthesia

4. Lightweight and portable unibody sheet metal construction

5. Vaporizer with automatic flow and temperature compensation, adjustable in 0.5% increments

6. Stable and secure isoflurane vaporizer output, with concentration adjustable from 0% to 5%

7. Integrated negative pressure scavenging system with real-time concentration monitoring and controllable activated carbon replacement

8. Compact and user-friendly design with built-in zero-lock knobs

9. Transparent anesthesia induction chamber for clear observation of anesthesia depth

10. Surgical masks adaptable to rats and mice; nasal interface can be customized based on animal size

11. Dedicated valve for connection to both pre-anesthesia chambers and surgical platforms

12. Waste gas absorption system to ensure a safe laboratory environment

Technical Specifications:

1. Main Unit Dimensions: 225 × 185 × 190 mm (L × W × H, excluding handle)

2. Power Supply: 220 V, 50 Hz

3. Gas Output Range: 0–10 L/min

4. Output Concentration: 0.5%–5% adjustable

5. Flowmeter Range: 0–1000 mL/min

6. Negative Pressure Scavenging Flow Range: 0–10 L/min

7. Scavenging System Screen: 4.3-inch touchscreen

8. Filter Concentration Monitoring: 0–20 ppm; filter replacement recommended when >20 ppm

9. Exhaust Filter: Transparent housing with replaceable filter media

10. Compatible Filter Materials: Activated carbon or soda lime

11. Anesthesia Induction Chamber: Transparent, 260 × 150 × 150 mm

12. Compatible Anesthetic: Isoflurane

13. Vaporizer Origin: United Kingdom

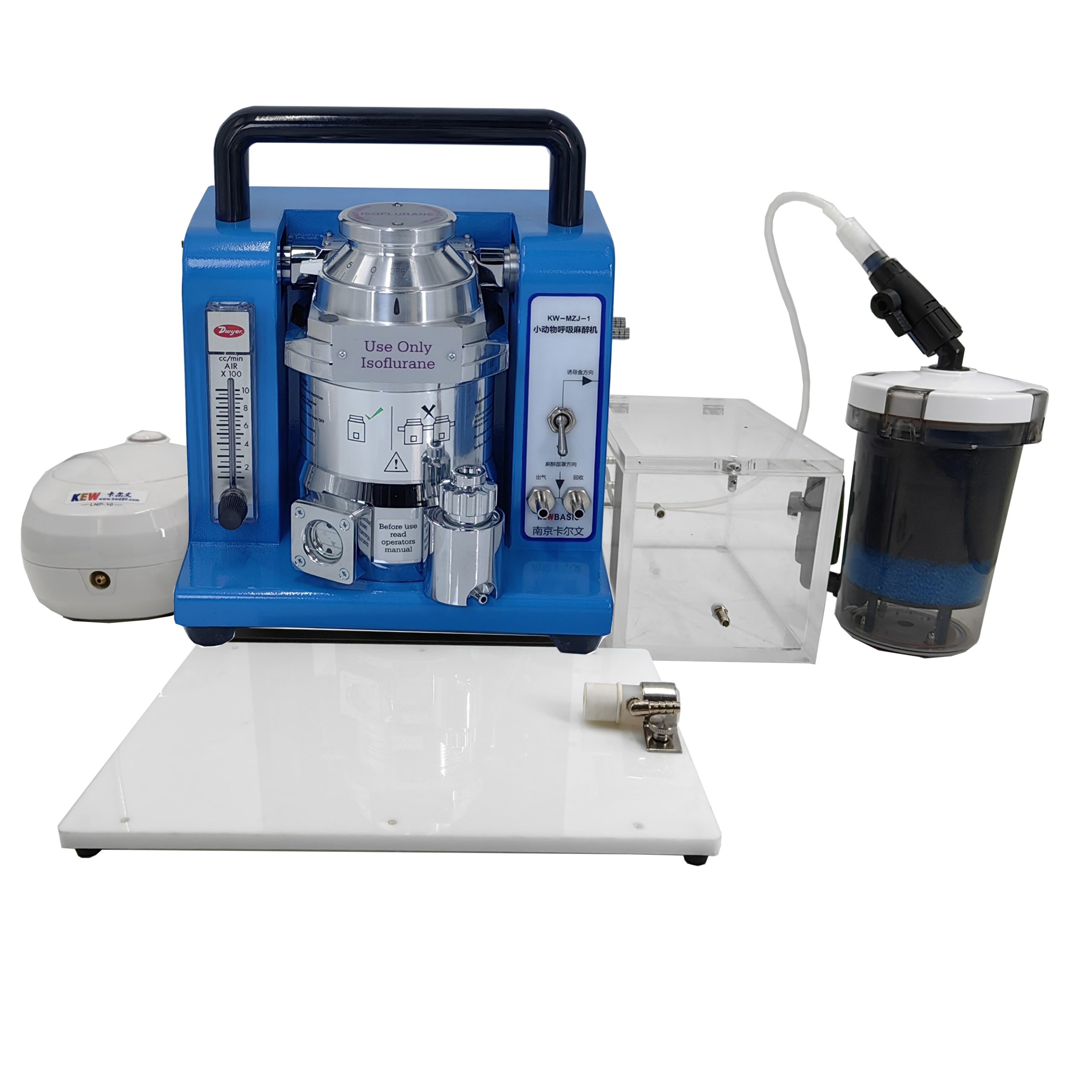

14. System Components:

    • 1 small animal anesthesia main unit

    • 1 gas output unit

    • 1 anesthesia filter

    • 1 pre-anesthesia chamber

    • 1 surgical platform set

    • 1 set of animal masks

    • 1 negative pressure scavenging unit
