Stereotaxic Instrument

Stereotaxic Instrument

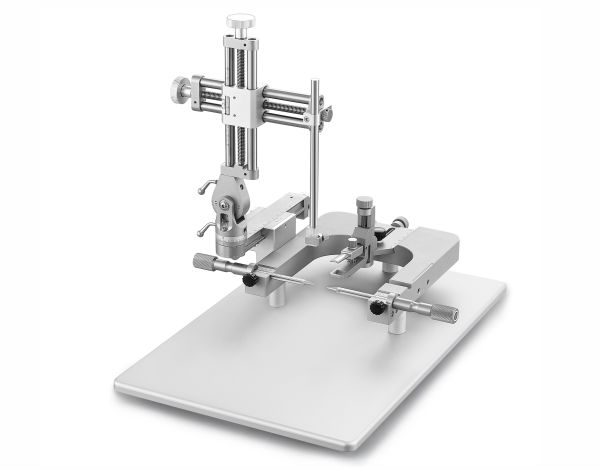

Stereotaxic instrument, also known as stereotaxic apparatuses, utilize a three-dimensional coordinate system based on external cranial landmarks or other reference points to locate specific subcortical neural structures. This enables targeted manipulation—such as stimulation, lesioning, drug injection, and electrical potential recording—without direct visual exposure of deep brain regions.

As essential equipment in neuroanatomy, neurophysiology, neuropharmacology, and neurosurgery, these instruments support a wide range of applications. These include establishing animal models of Parkinson’s disease, epilepsy, and intracranial tumors, as well as research on learning and memory, neural stem cell transplantation, cerebral ischemia, and other neurological processes.

Product Features

  1. Standard models compatible with adapters for rats, mouse, birds, cats, rabbits, guinea pigs, geckos, and other species

  2. Manipulator arm movement range: 80 mm in vertical, lateral, and anterior-posterior axes; readout accuracy: 0.1 mm

  3. Vertical rotation up to 180° and horizontal rotation up to 360°, with locking capability at any position

  4. Dual lead-screw design ensures stable, precise, and smooth operation; extended baseplate: 400 mm × 255 mm

  5. Suitable for multiple species; unique vertical operation direction indicator prevents misuse

  6. Independent vertical locking and positioning knobs ensure precision at any angle

  7. Optimized lateral rotation workspace: 28 mm clearance between knob and U-frame

  8. Specially treated scale components reduce reading fatigue

  9. Curved design of animal head adapters for secure and stable fixation

  10. Ear rod locking mechanism uses a pressing plate for ease of use

  11. Compatible with microsyringe pumps, microscopic imaging systems, and cranial drills

  12. Includes base, manipulator arms, adapters, ear rods, and holders

Technical Specifications

  1. Compatible with adapters for rats, mouse, birds, cats, geckos, and guinea pigs

  2. Manipulator arm travel: 80 mm in vertical, lateral, and anterior-posterior directions

  3. Vertical rotation: 180° with position locking

  4. Horizontal rotation: 360° with position locking

  5. Manipulator positioning accuracy: 10 µm in all axes

  6. Baseplate dimensions: 355 × 255 mm

  7. Micro-injector vertical positioning accuracy: 10 µm

  8. Built-in copper bushing in manipulator arm for grounding in electrophysiology experiments

  9. Compatible with micro-injection pumps, imaging devices, and cranial drills

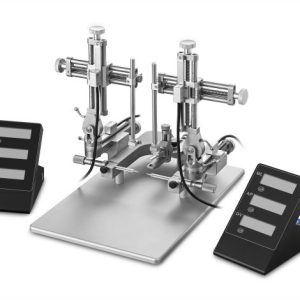

  10. Dual manipulator arm configuration allows simultaneous multi-step procedures

  11. Laser-engraved scales and open U-base design facilitate easy reading

  12. Triple lead-screw mechanism ensures smooth and precise 3D movement

  13. Maintains accuracy and flexibility across varying temperatures

  14. Specially treated surfaces for easy cleaning and long-term maintenance

  15. Spiral advancement ear bars enable rapid and secure skull fixation

  16. Weight: 5.5 kg

  17. Includes one set of electronic rat brain atlas
